Tractionmax – TX1015GM

Description

TractionMAX – installs in just minutes

• improves vehicles acceleration and traction.
• waterproof – rugged design
• plug and play – simple install

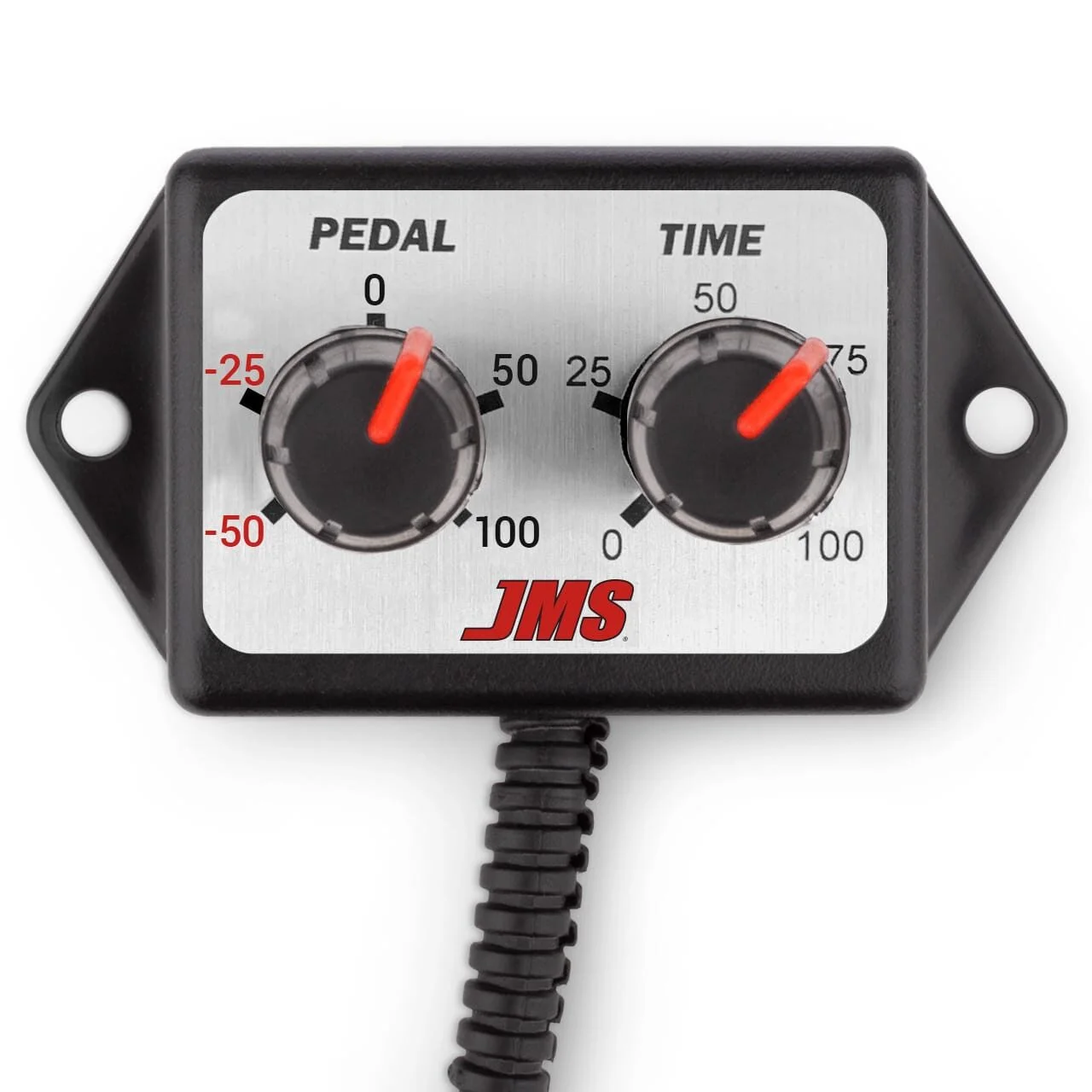

• remote adjustment knobs included dial in your exact throttle and traction settings.
• enhance low and mid-range horsepower torque and acceleration.
• reduce turbo lag eliminate stalling on manual gearbox vehicles.
• can also be stacked with other tuningproductsto maximize performance.
• designed and assembled in the U.S.A.

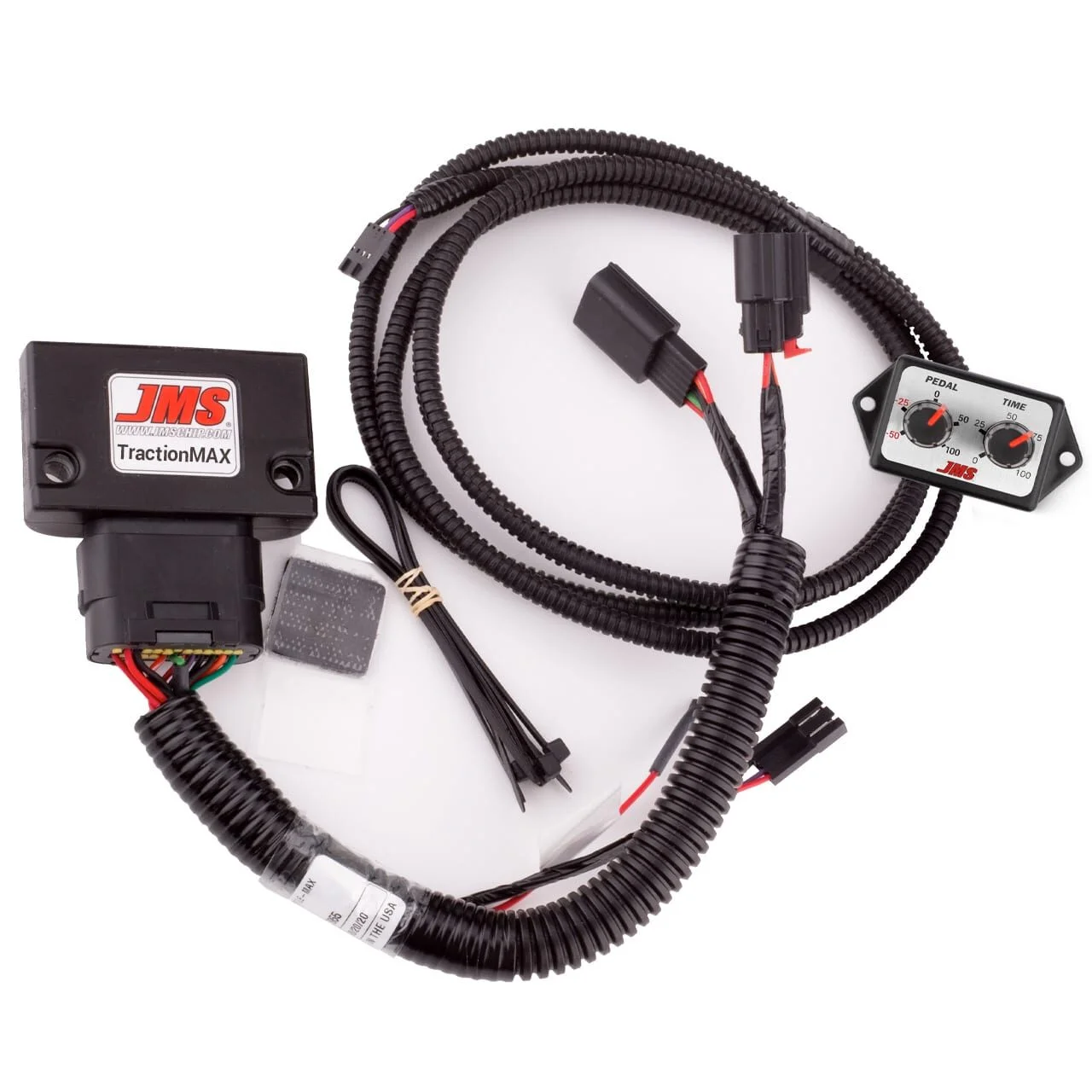

each kit contains:TractionMAX device plug and play wiring harness remote adjustment knobs installation kit accessories and installation instructions

automated traction feature – turn on the feature by installing the three pin jumper (included).

• typically this feature would be used by a vehicle with a manual transmission.

overview: traction control works once and then it is locked out for 20 seconds.

USAge exandle:

• launch in first gear – TractionMAX controls the rate of acceleration to keep the tires from spinning.
• TractionMAX lockout for the next 20 seconds &mdash the throttle functions like normal.
• during lockout gears can be shifted and the throttle responds like normal.

note: to enable lockout you must go to wot (wide open throttle).

• after 20 seconds the traction control feature is re-enabled.

ON-THE-FLY traction feature – turn on the feature by installing the three pin connector with two wires.

• connect the two blunt wires to a momentary switch or regular switch.
• feature is activated when the two wires are connected together.
• typically this feature would be used on a vehicle with an automatic transmission.

overview: traction control is disabled when the two wires are connected together.

USAge exandle:

• launch vehicle – TractionMAX controls the rate of acceleration to keep the tires from spinning.
• push the ON-THE-FLY TractionMAX lockout button when you want the throttle to function like normal.

alternative USAge:

• connect the two wires to a toggle switch.
• turn TractionMAX on/off using the toggle switch
• automated traction lockout feature – this feature is enabled when the customer plugs in the automated lockout enable jumper (included).
• ON-THE-FLY traction lockout feature
• use your own button or switch to enable or disable the traction control feature.
• wiring to connect your own control button isincludedor you can upgrade to the optional (sold separately) JMS control button.

Instructions: https://jmschip.com/content/TractionMAX/TractionMAX_install_JMS.pdf

ARB EO Numbers: https://jmschip.com/content/PedalMAX/JMS_EO_list.pdf

Compare PedalMAX – Terrain – TractionMAX: https://jmschip.com/content/PedalMAX/PM-PMT-TM_comparison.pdf

Catalog: https://jmschip.com/content/JMS_Catalog_Web.pdf
